Hydraulic Grapple
Tedy has a professional technical team offering strong technical support for high quality products with new product's research, advanced manufacturing procedure and after-sales service.
- Description
-

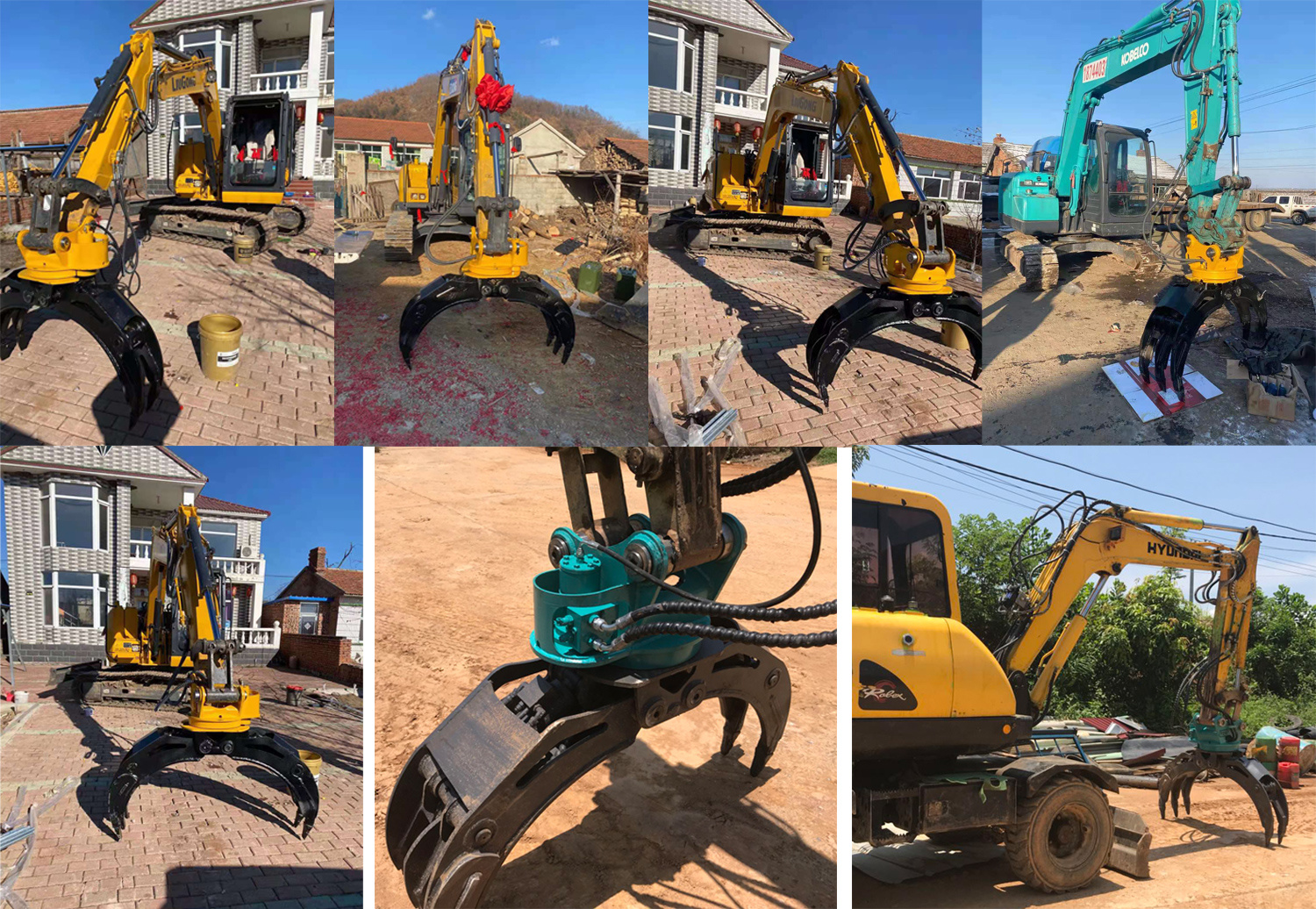

Case Images
Product features
1,High quality material(Q355B)provide high steel toughness and good abrasive resistance
2,Imported Motor with balance valve,have buffer and brake function
3,The cylinder is equipped with non-return valve,provide good reliability and safety
4,High strength rotate support device.Operator can control the speed for 360degree clockwise rotation or anti-clockwise rotation.
5,large open dimension,light weight with excellent performance
6,Using specially customized rotating gear to lengthen the product lifetime and reduce maintenance cost.
7,Can be fixed type(without rotating device)and we do customization
Product parameter
Model
Weight
Opening
Dimension
Working
Pressure
Set Up
Pressure
Working
Flow
Cylinder
Volume
Suitable
Excavator
kg
mm
kg/cm2
kg/cm2
L/min
L
Ton
TDC04
420
1400
120-160
180
50-100
4.5*2
5-9
TDC04-06
500
1400
150-170
190
90-110
8.0*2
10-15
TDC06
880
1600
150-170
190
90-110
8.0*2
10-15
TDC08
1380
1900
160-180
200
100-140
9.7*2
17-26
TDC10
1620
2200
160-180
210
130-170
12*2
26-33
Keywords: hydraulic accessories
